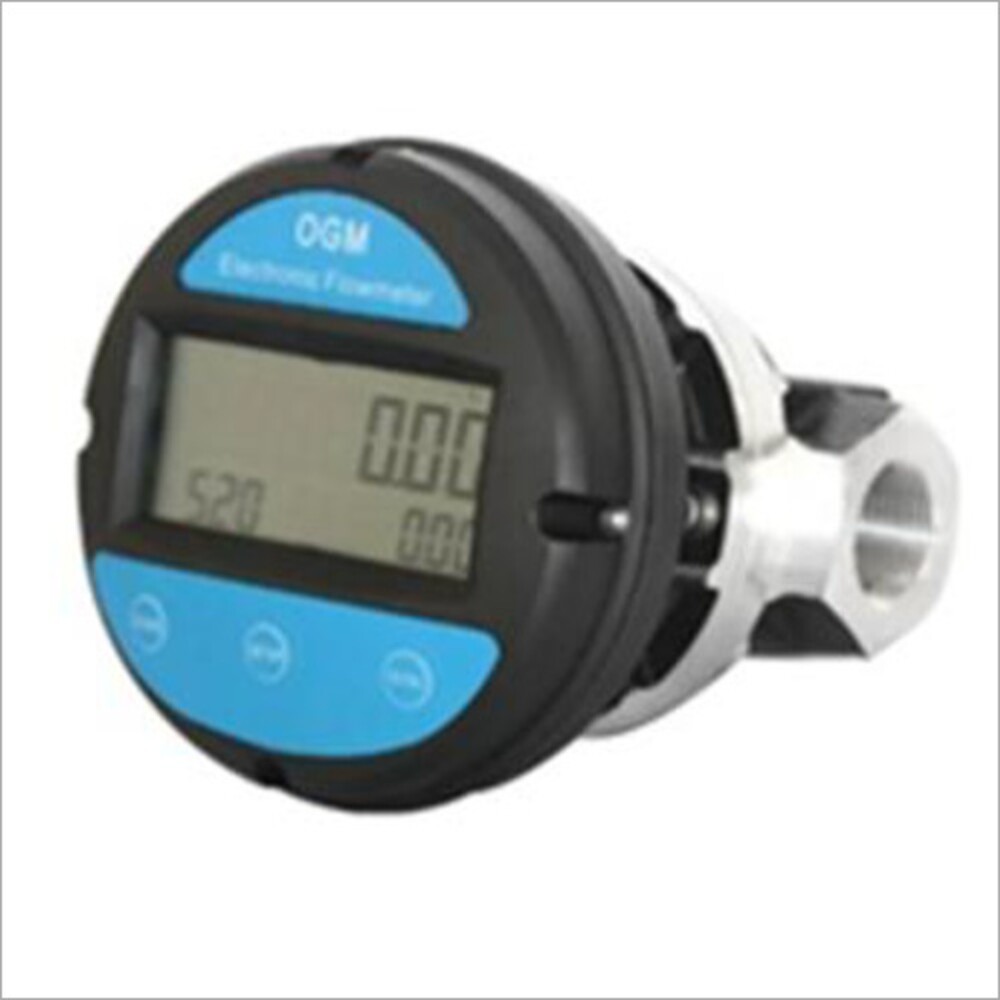

Digital Battery Operated Oval Gear Flow Meter

Name: Digital Battery Operated Oval Gear Flow Meter
Brand: NECTAR ENGINEERS

Get a Price/Quote

MOQ : 1 Unit

Digital Battery Operated Oval Gear Flow Meter Specification

Introduction

The OGM oval gear flow meter designed with a full-featured, simple structure, convenient operation. Can be widely

used in Petroleum, Chemical, Pharmaceutical, Transportation, Food to be industrial and commercial. Screen digital

LCD monitor, the screen is divided into three: the top row as CURRENT TOTALISER, the second row left TOTALISER,

the second row right CUMULATIVE.

OGM-mechanical and electronic series Aluminum oval gear meter has ability to handle a wide range of fluid viscosities.

Features

Measurement range widely, accuracy highly, reach 0.5%
Simple structure, small pressure loss and strong viscosity Measure
Easy installation, horizontal or vertical installation
Modular design allows for use with Output Modules, Sensors and Remote Totalizer.
Local Display features: 2 Totals (1 Resettable, 1 Cumulative)
User Calibration Mode
Internal parts are simple to replace for easy maintenance.
Lightweight, compact design allows for easy installation.
