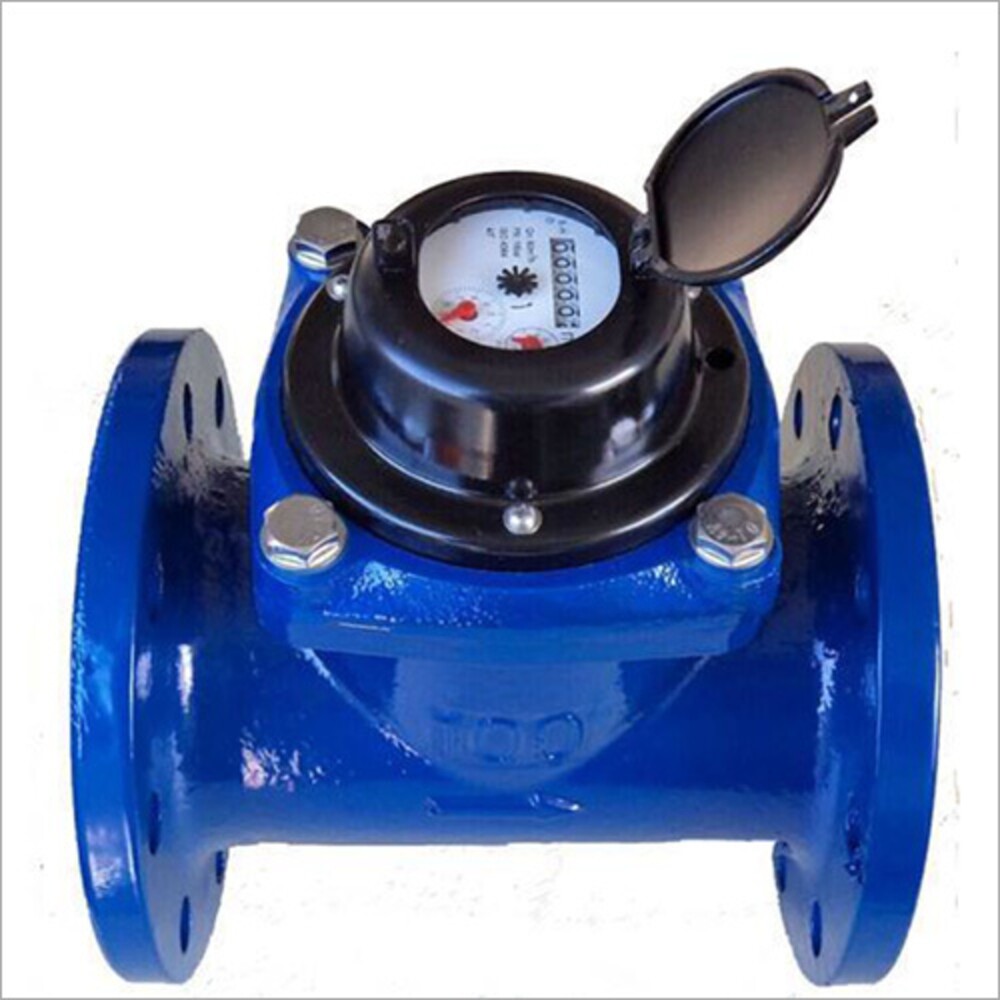

Mechanical Wolttman Dry Dial Type Flow Meter

Get a Price/Quote

MOQ : 1 Piece

Mechanical Wolttman Dry Dial Type Flow Meter Specification

Introduction

Woltman meters are Dry Dial Magnetic Driven Turbine Flow Meters measure the velocity of the water flowing

through with the help of a turbine. The volume is mechanically calculated, through the known section area and

indicated with the roller counters in cubic meters.

In the horizontal axis Woltman meters, the turbine shaft is arranged parallel to the axis of the pipeline. The rotation

of the turbine is transmitted through a worm gear to the dry dial counter. A very robust construction, little head loss.

Industrial meters bulk type magnetic drive as per ISO 4064 flange end. Dry dial, Magnetic Drive Measuring Accuracy

Conforming to ISO 4064 CLASS-B Interchangeable Spare Parts for easy maintenance

Features

Woltman type water meter, dry dial type register with magnetic transmission.
Hermetically sealed register, and protected against external magnetic interference.
Optimum accuracy with very low starting flow rate and pressure loss.
Removable measuring insert.
Long-life, low maintenance operation,
Performance well at all times and in horizontal position.
Dimensions as per ISO4064.
The water meter in special edition is equipped with pulse output.

Applications

Technical Specification

Type	Woltman removable type, Pulse Output (Optional)
Material	Cast Iron
Dial	Dry Dial, Magnetic Driven
Display	Mechanical Rotary Digit, 9999999 m3
Mounting	Horizontal
Line Size	DN 50 to DN 500
Temperature	45 Deg. C for cold water meter 90 Deg. C for hot water meter
Working Pressure	1.6MPa
Test Pressure	2.0MPa
Indicating Error	2% from Qmax (inclusive) to Qt(inclusive) 5% from Qt (exclusive) to Qmin ( inclusive)
